Revolutionizing Medical Device Production with Servo Ultrasonic Welding Efficiency

In the ever-evolving world of medical device manufacturing, precision, speed, and reliability are non-negotiable.

Manufacturers who support critical healthcare procedures, such as organ transplantation, must not only meet high

standards of performance but also ensure that every device is produced to the highest levels of consistency.

Servo ultrasonic welding, a state-of-the-art bonding technology, has become a game-changer for

one medical device company that specializes in organ, tissue, and cell preservation solutions.

This advanced welding system is transforming their production line,ensuring that their devices

meet stringent regulatory standards while significantly enhancing efficiency and reliability.

The Challenge: How to Ensure Precision and Integrity in Disposable Sensor Assembly?

The medical device company in question specializes in creating disposable sensors used during ex vivo assessments,

which are crucial to organ preservation and perfusion. During these assessments, artificial blood is tested outside the

 human body to evaluate its functionality before transplantation. These sensors continuously monitor critical parameters

 like pH levels and gas concentration in the artificial blood, providing real-time data to ensure optimal preservation conditions.

However, the production of these sensors comes with a number of challenges. The most significant of these is assembling

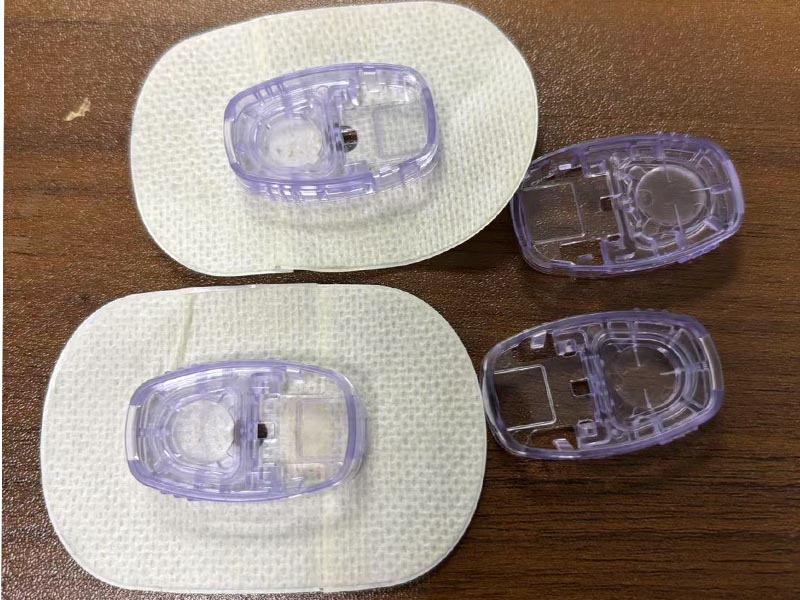

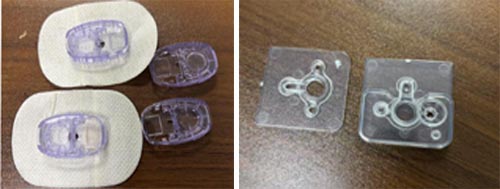

the tiny polycarbonate caps that enclose the sensor’s internal components. These caps are not just containers—they serve

 as the protective housing for three delicate, medicated films that monitor the blood’s chemical composition.

Any misalignment, contamination, or damage to the films could result in inaccurate readings, compromising

the entire transplant process.

The need for precision in placing the films and ensuring a secure, contaminant-free seal makes the sensor assembly process

particularly challenging. The task becomes even more difficult because of the small size of the components involved—

every part must align with micrometer-level accuracy to ensure the device functions as intended.

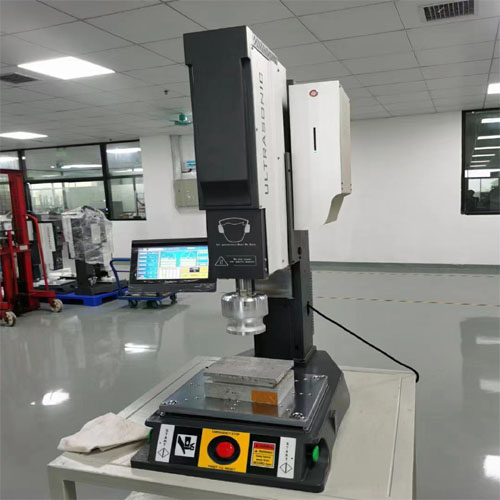

Solution: How Can Servo Ultrasonic Welding Technology Address These Challenges?

To tackle the challenges of assembling these highly sensitive disposable sensors, the manufacturer turned to

 servo ultrasonic welding—a cutting-edge technology that brings unmatched precision, speed, and reliability

to the assembly process.

How Ultrasonic Welding Works?

Ultrasonic welding uses high-frequency sound waves (much higher than what we can hear) to generate vibrations

in the materials being welded. These vibrations cause the materials to vibrate rapidly, which generates localized heat

right at the contact point. This heat softens the surfaces of the materials, allowing them to melt and bond together

 at a molecular level—all without any need for external heat sources. This is a huge advantage, especially when

dealing with delicate or temperature-sensitive components, because the process is much gentler compared to

traditional methods like heat sealing.

The Advantage of Servo-Driven Ultrasonic Welding: Precision and Efficiency in Assembly

The game-changer here is the servo control technology integrated into the ultrasonic welding system.

Unlike traditional systems, which may offer basic pressure and vibration, servo-controlled ultrasonic welding

 allows for precise adjustments in both pressure and vibration. This means the manufacturer can fine-tune the process,

 ensuring that each tiny cap is sealed consistently and accurately every time. This level of control is essential when

working with the small, intricate components like the polycarbonate sensor caps.

The system's flexibility is also a major advantage. It can easily adjust to different material types and varied sensor configurations,

making it adaptable to the diverse range of components that are required for the sensors. Whether it’s a smaller or larger part,

the ultrasonic welding system can handle it with ease, providing a customized solution for each unique sensor assembly.

Protecting Delicate Components

One of the key advantages of servo ultrasonic welding is its ability to protect sensitive components during the assembly process.

In this case, the polycarbonate caps contain three medicated films that are crucial for monitoring the pH and gas levels in artificial blood.

These films are very delicate, and any damage during the sealing process could lead to the malfunction of the entire sensor.

Ultrasonic welding allows for precise and gentle sealing, ensuring that the films are not affected by heat damage or misalignment.

Since ultrasonic welding does not rely on traditional heating to melt the materials (except for the localized heat generated by vibrations),

it eliminates the risk of overheating or damaging the sensitive films inside. As a result, ultrasonic welding provides a strong and reliable seal,

 ensuring that the sensor works as intended and avoiding any risk of contamination or malfunction.

Why This Matters?

This high level of precision not only protects the integrity of the sensors but also ensures that the assembly process is

consistent and repeatable—critical factors when manufacturing medical devices. Each sensor must be sealed to exact

specifications to maintain the highest standards of safety and reliability—especially when the sensors are being used

in life-saving transplant procedures.

By adopting servo ultrasonic welding, the manufacturer ensures that every sensor is sealed with precision, preserving the films

inside and creating a reliable bond that’s free of contaminants. This approach doesn’t just meet the demands of efficiency

but ensures that the quality of each device is upheld, leading to improved patient outcomes in critical medical procedures.

Key Benefits of Servo Ultrasonic Welding

High Precision and Repeatability: One of the biggest advantages of servo ultrasonic welding is its ability to maintain

high precision across numerous production cycles. Since medical devices must meet rigorous regulatory standards,

the manufacturer cannot afford any deviation from the prescribed specifications. The servo system controls pressure,

amplitude, and vibration speed, ensuring repeatable accuracy with each sensor assembly. This level of control is vital

when assembling components that affect the safety and functionality of medical devices.

Increased Production Efficiency: Unlike traditional methods such as heat sealing, which requires time to heat up

and cool down, ultrasonic welding is a much faster process. This is particularly valuable when dealing with delicate

components. Since ultrasonic welding doesn’t rely on external heat sources, it eliminates the downtime associated

with preheating or cooling, making it possible to perform multiple welds in rapid succession. As a result, the manufacturer

benefits from faster cycle times, improving throughput and reducing bottlenecks in the production line.

Enhanced Material Integrity: The ultrasonic welding process creates hermetic seals—airtight, moisture-proof bonds that

ensure the device remains free from contamination. The precise nature of the weld means that the polycarbonate cap,

as well as the medicated films inside, are protected from any external contaminants during assembly. Moreover,

the process creates a bond that’s incredibly strong and durable, preventing any leakage or malfunction during use.

This is especially crucial in medical devices where the failure of one component can result in catastrophic consequences.

Reduced Waste and Energy Consumption: Servo ultrasonic welding operates with significantly less energy consumption

 compared to traditional heat sealing methods. Heat sealing requires constant heating and cooling of large metal bars,

resulting in energy waste, especially during idle times. In contrast, ultrasonic welding only uses energy when the machine

is actively bonding materials, which leads to lower overall energy usage. Additionally, the precision of the welding process

minimizes material waste, further improving the manufacturer’s sustainability practices.

Outcome: Improved Quality, Efficiency, and Regulatory Compliance

Since implementing servo ultrasonic welding in their production line, the medical device company has seen substantial

improvements in both efficiency and product quality. By speeding up the sensor assembly process and ensuring each

device is welded with the utmost precision, the company has significantly reduced production time while improving

quality consistency. This not only enhances the manufacturer’s bottom line but also allows them to meet the increasing

demand for their critical devices.

Furthermore, the precision of the ultrasonic welding process ensures that every sensor is manufactured to meet the highest

regulatory standards set by medical authorities. Since ultrasonic welding doesn’t expose the materials to excessive heat,

 it ensures that delicate materials, such as the medicated films, remain undamaged and functional throughout the process.

This has helped the company maintain a strong track record of producing reliable, high-performance devices.

Conclusion: A Leap Forward in Medical Device Manufacturing

The integration of servo ultrasonic welding has proven to be a trans formative solution for the medical device manufacturer.

The technology has allowed the company to streamline its operations, improve production efficiency, and enhance the reliability

 of its disposable sensors. This partnership between the ultrasonic welding manufacturer and the medical device company is

a prime example of how innovative welding technology can drive improvements in manufacturing processes while ensuring

the safety and functionality of life-saving medical devices.

As medical technology continues to advance, the adoption of cutting-edge technologies like servo ultrasonic welding will

play an increasingly important role in improving the precision, efficiency, and sustainability of medical device manufacturing.

With the success of organ transplantation and other critical healthcare procedures often depending on the performance of

these devices, innovations in manufacturing are essential to enhancing patient outcomes and supporting the future of healthcare.
