Characteristics of Ultrasonic Metal Welding Molds

Characteristics of Ultrasonic Metal Welding Molds

The importance of Ultrasonic Metal Welding Machine as a component that directly

contacts the product is self-evident. Let's take a look at the characteristics of ultrasonic

 metal welding moldsWhen you see an ultrasonic mold, you might think that designing

and manufacturingan ultrasonic mold must be simple. However, that's not the case.

The design of ultrasonic molds is not as straightforward as their appearance suggests;

it requires specialized knowledge and skills. When an improperly processed or unadjusted

welding head is used, it can lead to losses in your production. It not only damages the

welding effect but can also directly result in damage to the transducer or generator of the

ultrasonic metal welding machine.

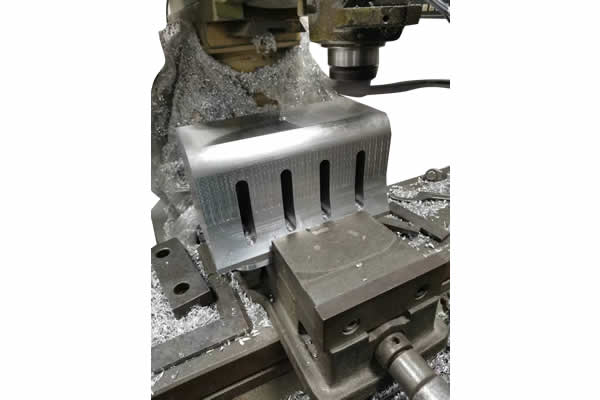

Factors to consider in the production of ultrasonic molds:

The process of producing ultrasonic metal welding molds is relatively complex and

 represents a deep aspect of ultrasonic technology. Even with several years of design

and development experience, the production of better welding heads can only be achieved

 through strict testing and quality control. By perfectly combining the acoustic and

mechanical characteristics of the welding head, it ensures that the mechanical vibrations

converted by the ultrasonic transducer are effectively transmitted to the workpiece,

allowing for continuous and stable welding. This is essential to create ultrasonic molds

that better suit customer products.

• Product Shape

  Consider the welding/fusing process to be used, the size of the ultrasonic mold, the pressure

  transmission area, potential deformations in the welding/assembly process, the required power,

  and the type of action needed. Determine whether the welding/fusing can be completed in one step.

• Product Material Properties

  Determine the working amplitude of the ultrasonic mold, the amount of ultrasonic energy the

  product must withstand during operation, and the form, position, and size of the energy-conducting

   lines. Consider how to design contact points when dealing with different plastic combinations.

  These factors, along with high-quality after-sales support, must all be taken into account. In summary,

   creating something is never as simple as it seems.

• Product Requirements

  Product requirements determine the lifespan and wear rate of ultrasonic metal welding molds, which,

  in turn, influence the choice of metal to be used.
