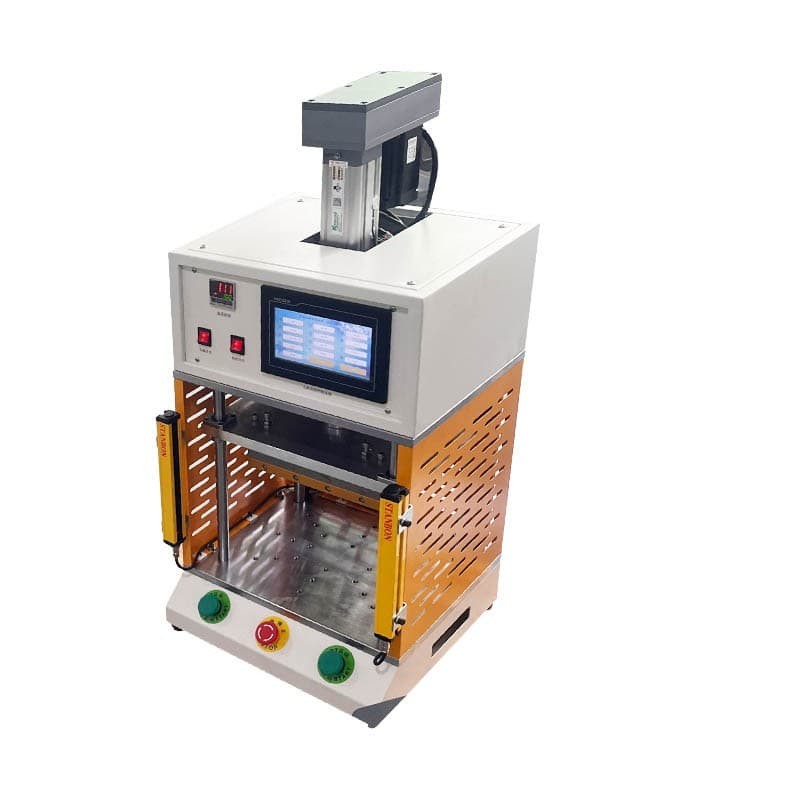

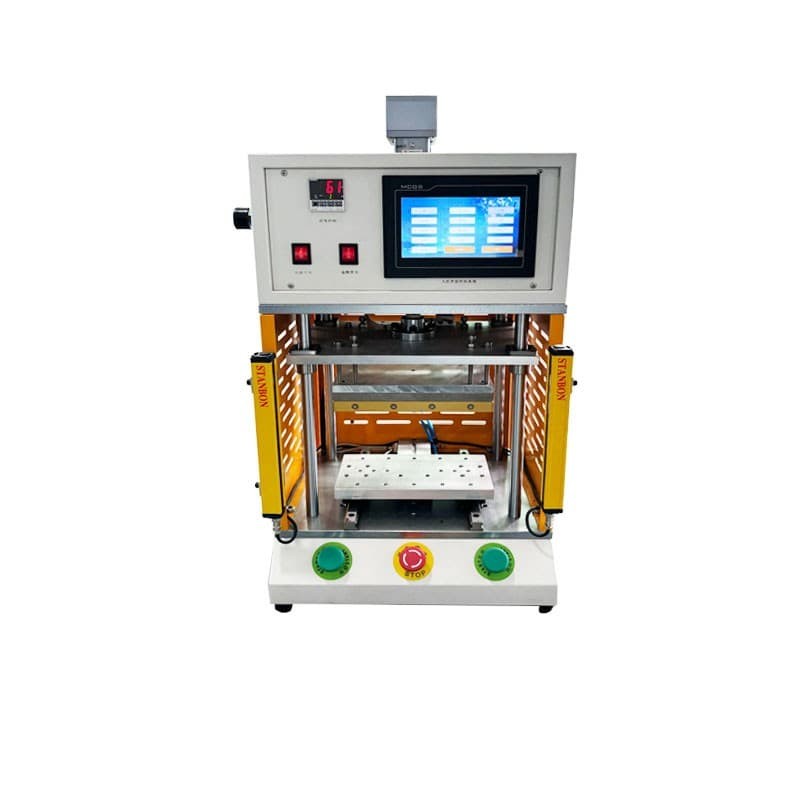

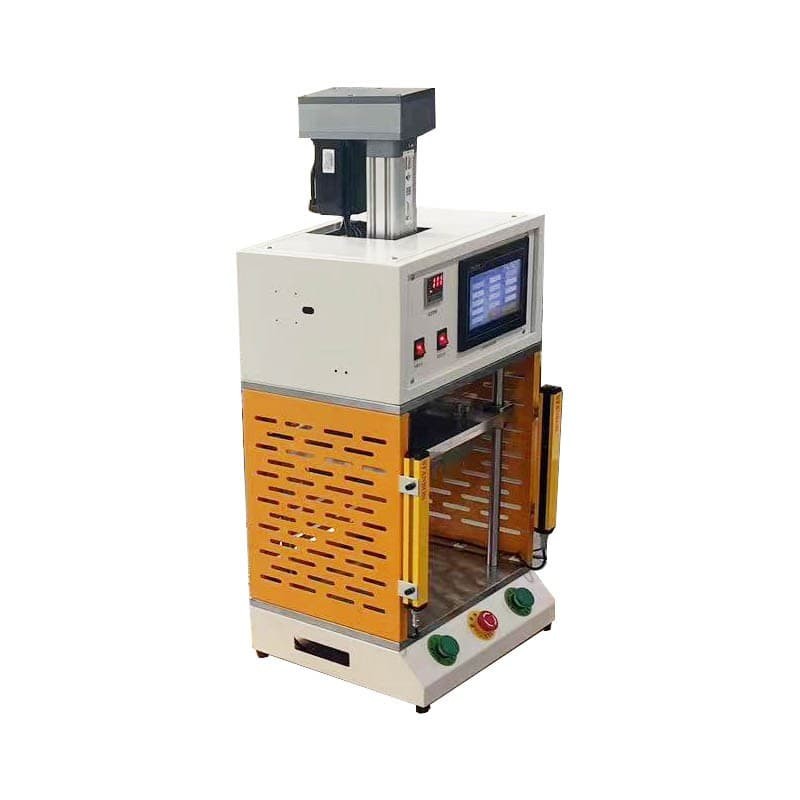

High Precision Servo Hot Press Welding Machine

High Precision Servo Hot Press Welding Machine

Brief

High precision servo hot press machine is a new type of equipment in the mechanical industry.

It boasts high precision, excellent quality, multiple functions, and a compact size, achieving results

 that conventional hot presses cannot. The device uses a high-precision servo electric cylinder as

its power source, enabling multi-stage precise travel at different rates. The data is displayed and

controlled via a touchscreen.

Working Principle of Servo Hot Press Machine

High precision servo hot press machine operates by applying a certain voltage to the hot press head.

Using low voltage and high current, it heats the high-impedance hot head, which in turn raises the

temperature of the objects in contact with it. When the temperature reaches the welding point,

the two objects in contact will fuse together.

A servo hot press machine is a precision hot press controlled by a servo motor. The servo motor

offers advantages such as precision, speed, adaptability, stability, responsiveness, and comfort.

By utilizing a servo motor, closed-loop control of speed, position, and torque is achieved,

preventing issues like excessive force, speed, and overshooting.

Basic Parameter

Main Unit Dimensions: 380420990mm

Net Weight: Approximately 80KG

Output Power: 2000W

Hot Press Time: 0～9.99 seconds (adjustable)

Pressure Holding Time: 0～9.99 seconds (adjustable)

Electric Cylinder Stroke: 0-150mm

Power Supply: AC220V±10% 50Hz
