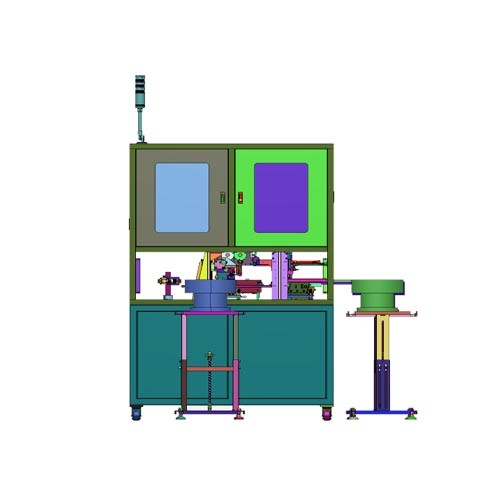

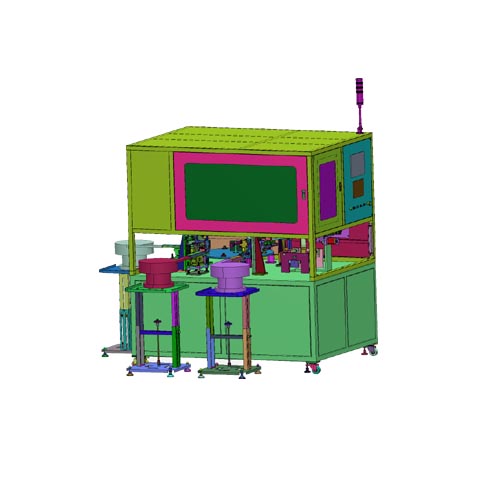

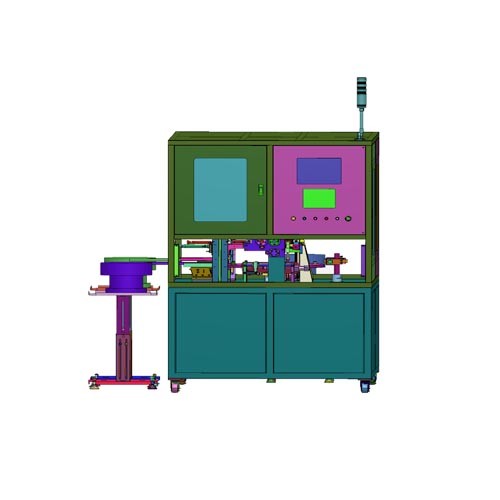

Automation O-ring and Plastic Core Assembly Machine

Automation O-ring Assembly Machine
is fully automatically operation mode. It highly improves work efficiency and hommization.

EMAIL

Automation O-ring  Assembly Machine


Application

This O-rings and Plastic Core Assembly Machine is fully automation operation mode.

Vibratory bowls supply o-rings and plastic drain onto work station.Robot units pickup and assembly one o-ring and the drain.

Then work station rotate to next station for assembly another o-ring. Once finally assembly, vision system inspect the sealing status.And signals will be sent to PLC for next procedure and analyze "OK" or "NG" status for unloading seperately.

Application Samples


Key Features

  • Automation operation: automatically loading,assembly and unloading.

  • AB (Allen-Bradley) PLC and  HIM system ensure operation system steability.

  • Reliable phenumatic parts:SMC cylinders.

  • Easy operation to avoid complicated process.

  • Doors safety interlock design.

  • Three colors alarm indicator.

Basic Parameters

Machine Dimension: 1900*1780*2050mm

Machine Weight: appr. 800KG(include 3 vibratory feeders)

Rotary Stage: 8 workpiece station

Power Supply: 220V 50Hz( or 110V 60Hz)

Machine Power: 1200W

Plastic Core Feeder Power: 500W

O-ring Feeder Power: 500W + 500W

Work Mode: Automation

Machine Doors: Interlock safety sensors(Omron)

Operation Language: EN/CN (optional another languages)

Warranty and After-sale Service

Warranty

Machine (except consumable parts like sensors) is one year warranty under normal operation,

 lifetime technical support and service. Machine parts defect during warranty period, which will be sent to

your end for replacement.


After-sale Service

If need any technical support,kindly contact us lively video call, phone call or email. email or phone call.

Oversea onsite service(optional): mutual communication for detail discussion.There could be extra fee

(like travelling fee,insurance,commodity fee,etc.) result from the traveling


Contact Us now and send us a Feedback for a personalized quote and further communication,thanks.
