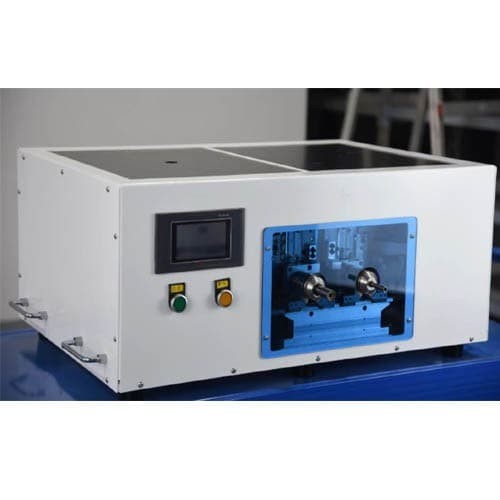

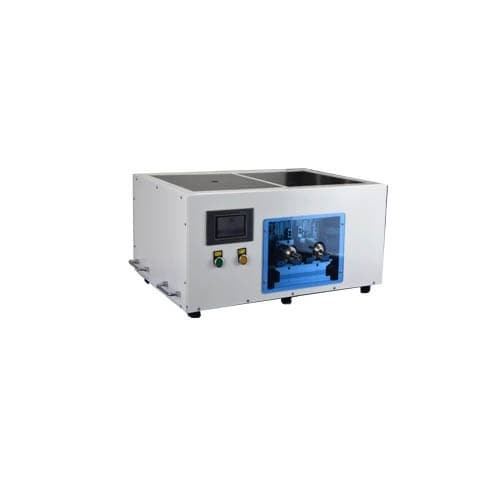

Double Station O-ring Assembly Machine

This equipment is a desktop sealing ring assembly machine, mainly composed of a sheet metal housing,

sealing ring feeding system, sealing ring expansion mechanism, lubrication oil filling system, electrical

control system, and other components.

EMAIL

Equipment Name and Model

Name: Semi-auto Desktop Assy Machine for Sealing Ring

Model: TEC-252M

Basic Dimensions: L800mm * W520mm * H320mm (Actual equipment dimensions may vary)



Main Features

a. This equipment is a desktop sealing ring assembly machine, mainly composed of a sheet metal housing,

sealing ring feeding system, sealing ring expansion mechanism, lubrication oil filling system, electrical

control system, and other components.

b. It uses a touchscreen all-in-one control system. The device parameters can be set, and information

 such as the number of finished products, fault locations, and troubleshooting methods can be viewed.

The screen interface is simple and easy to understand, making daily use and maintenance convenient.



Pneumatic System

a. Main pneumatic components such as cylinders, solenoid valves, and air filters are from the Taiwan AIRTAC brand.

b. The air supply system includes pressure stabilization, air-water separation, and impurity filtration devices to ensure dry and clean air.


Electrical Control System

a. Controlled by an integrated touchscreen, with electrical components complying with national safety standards.

b. High-quality brands are used for the main power switch, relays, buttons, and imported sensors.

c. All electrical wiring uses standard terminals with accurate labeling.


Technical Specifications

a. Feeding method: O-rings are fed by vibrating bowls.

b. Control method: Integrated touchscreen.

c. Factory humidity: ≤95%, Factory temperature: 3–40°C.

d. Compressed air pressure: 0.5–0.7MPa.

e. Power supply: AC220V ±15%, Frequency: 50Hz ±2%.

f. Equipment capacity: Approx. 400-600 pieces/hour.

g. Work Station: doubles

h. Lead Time: 15 working days


Warranty and After-sale Service

Warranty

 Machine(except consumable parts) is one year warranty under normal operation,

 lifetime technical support and service.If need any technical support,kindly contact us by

email or phone call.Machine parts defect during warranty period, which will be sent to

your end for replacement.


Oversea onsite service(optional):  mutual communication for detail discussion.

 There could be extra fee(like travelling fee,insurance,commodity fee,etc.) result from the traveling.
