Ultrasonic Metal Welding Machine for Welding Wire to Terminal

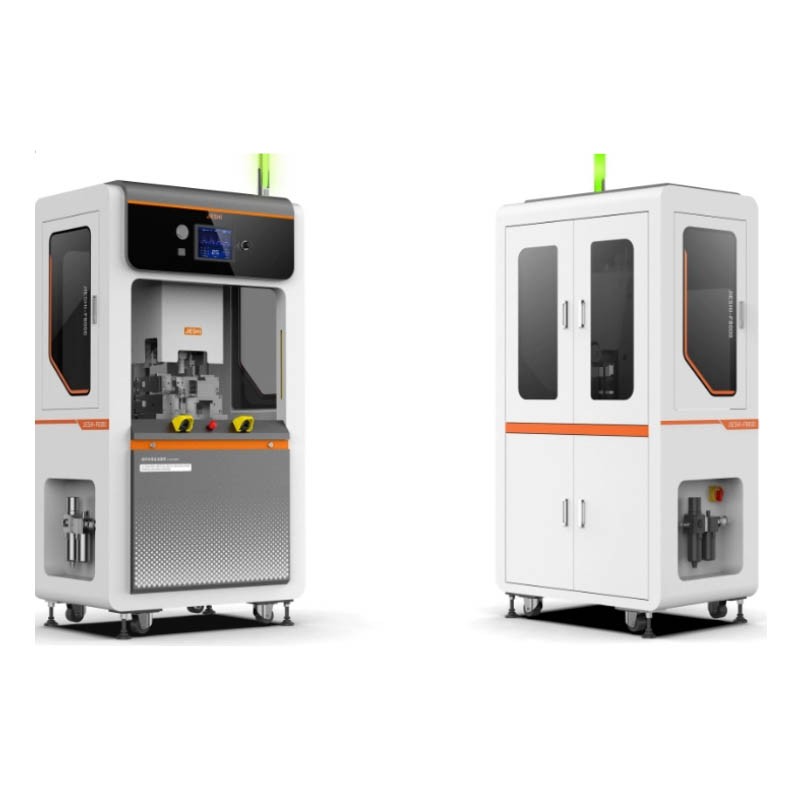

TEC-2060 Ultrasonic Metal Welder for Copper Wire to  Copper/Aluminium Terminals

Application

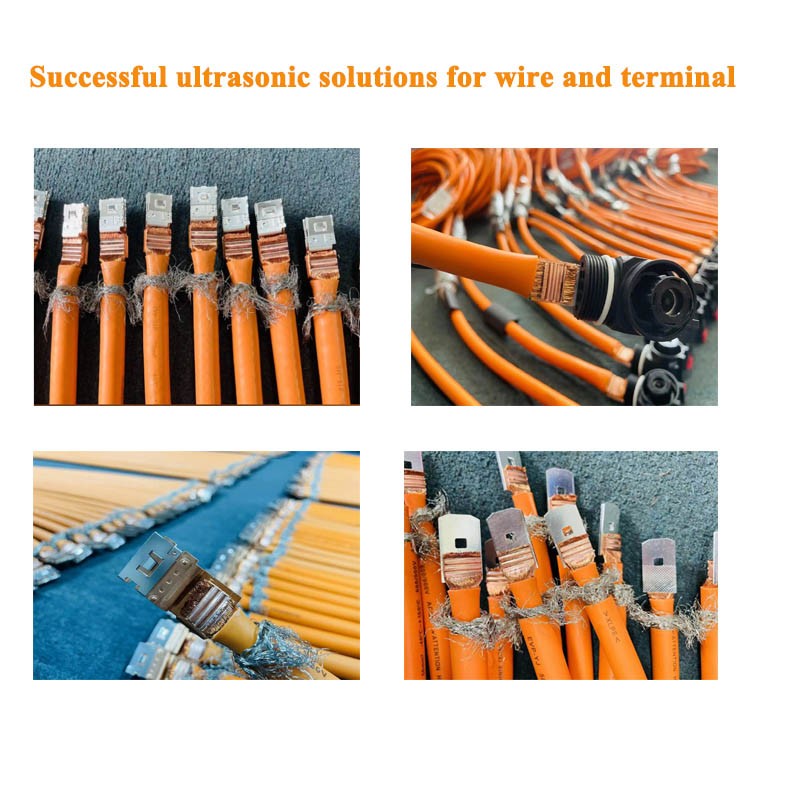

Ultrasonic Metal Welding Machines can be applied to various metal welding fields, such as the

automotive industry,lithium batteries, power batteries, automotive wiring harnesses, and other

automotive components.

Welding materials: negative electrode sheet welding, nickel strip and copper foil, aluminum foil

and aluminum strip,aluminum cover plate and aluminum-nickel composite strip, aluminum to

nickel welding, etc. Soft pack battery welding,multi-layer copper foil and nickel-plated copper strip

welding,copper foil and nickel-plated strip fusion, ensuring strong welding.

Welding methods: The welding head can be customized with two welding surfaces or four welding

 surfaces, with each welding surface having one welding spot.

Ultrasonic welding is an energy-efficient, precise process for permanent joining of nonferrous metals,

preferably copper and aluminum.

Key Feature

1. Digital circuit, time mode, holding pressure time, mold adjustment mode, adjustable amplitude,

   automatic frequency tracking, intelligent protection, workpieces drop detection during welding,

   welding record query, USB port for U disk insertion, data storage, Chinese/English screen switching.

2. Automatic frequency tracking technology (truly fully automatic frequency tracking, no need to

   adjust the frequency when replacing the welding head and during the welding process), dynamic

   welding current indication.

3. Frequency deviation and over-currency protection is adjustable during welding by manual mode.

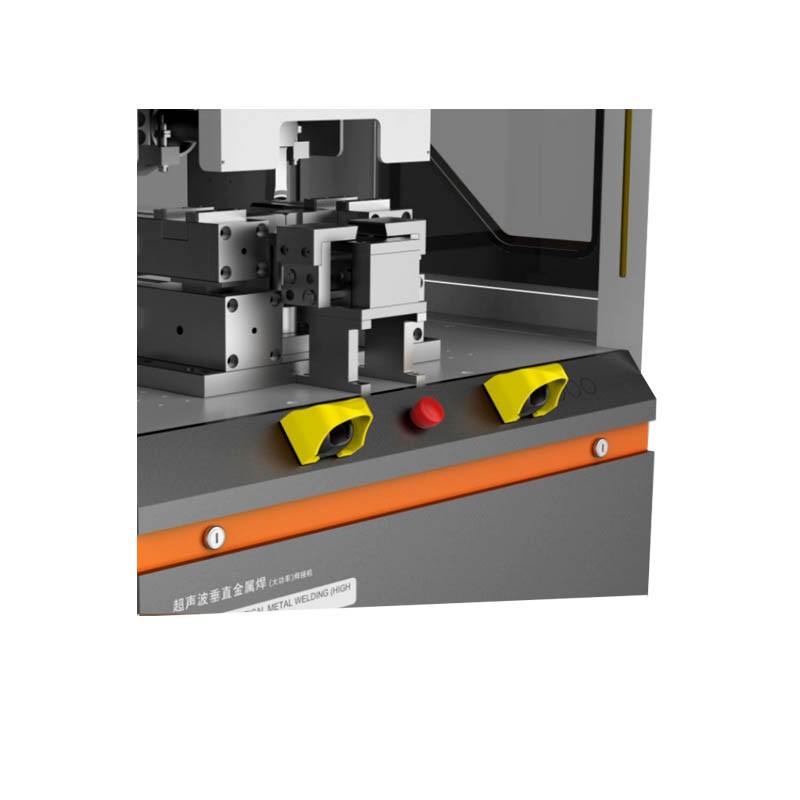

4. Precision linear guide rail ensures smooth operation of the equipment and optimal welding accuracy.

   The power box can maintain stable amplitude output during voltage fluctuations

Basic Parameter

Model : Intelligence TEC-2060

Language: CN/EN

Power Supply:  AC 220V (50/60Hz)

Max Power: 6000W

Frequency :  20Khz

Welding Time: 0.5s-9.99s

Welding Range:  Copper wire to copper /aluminum welding 5㎟ to 35㎟

Operation Humidity: 0 - 40

Work Pressure :  0.2Mpa - 0.8Mpa

Ambient Temp:  20~70% Condensation-free

Machine Size: 1090x890x2000mm

Ultrasonic Generator:  400x280x230mm

Machine Weight: Appox. 200KG

FAQ

 1:How long will you reply my email?

A: All emails will be answered within 12 hours.

2: How long is your product’s Warranty?

A: If the hardware failure in normal usage, we provide for 12 months free guarantee service

    from the date of sale, including but not limited to repair or replacement. However, man-made

    damage, dismantling by unauthorized personel, or normal wear and tear are not covered by

    guarantee service.

3: How long can I have your support?

A:  For any usage problem can consult our after-sales team for Life-Long.

     Email or online meeting suuport available.

4. Can I do samples testing before Purchasing ?  What is the MOQ of  machine ?

A: It is available for samples before order. MOQ is one.

 5. Could you advise to us the design based on our special requirements or based on our object samples?

A: Of course, we can do. Please tell us your idea or your application.If you have sample object,

    send it to us or send detail pictures.

6. How can you guarantee the production quality?

A: We have over 10 years production experience and we have strictly quality control system

     in our production process. Running testing and inspection is proceeded for each ultrasonic machinebefore

      the delivery.Third part inspection acceptable.

7. What is your warranty and after-service?

A. Machines are one year warranty and life-span technical support. Free operation training at our facility.

    If need onsite installation and training, we can go on further communication. After-sale service service

    could be done through call,email,video,etc.

Please contact us for further detail and purchasing,thanks.
