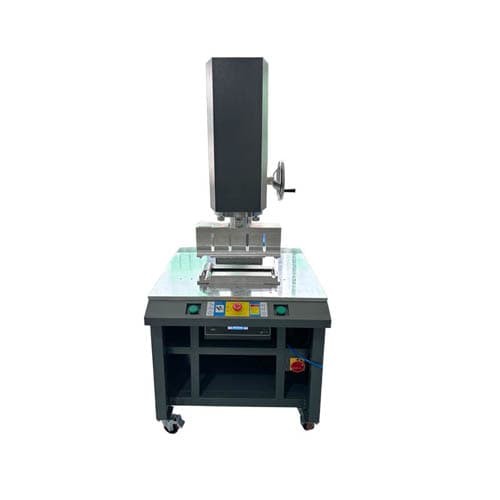

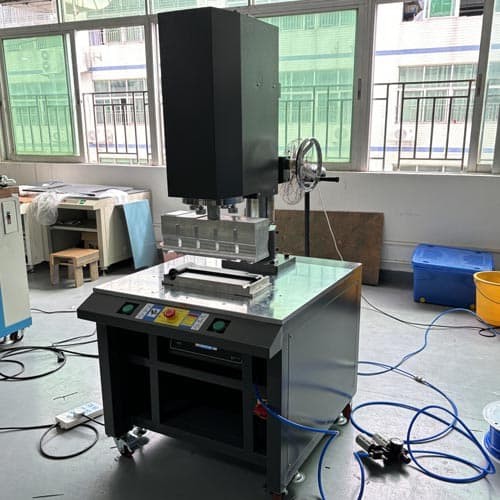

15Khz 6000W Ultrasonic Welding Machine for Thermoplastic Parts

EMAIL

15Khz 6000W Ultrasonic Welding Machine for Thermoplastic Parts

Application

Ultrasonic welding machine is now widely used in automotive manufacturing, shipping,

 aviation, electrical appliances, packaging, toys, electronics, stationery, medical equipment,

 environmental protection products, textile and other industries, has successfully achieved

a variety of plastic welding such as:ABS, AES, AMMA ,ARP, AS, PS, PP, PC, PE,PVC, etc.


Key Features


  • Frequency: 15KHZ.

  • Automatic frequency tracking.

  • All starting components are authentic Airtac pneumatic.

  • High output power and stable performance.

  • Fast welding, with each welding time ranging from 0.01 to 0.99 seconds.

  • Exquisite welding effect and high welding quality.



  • Machine Parameter

  • Model: TEC-1560M

  • Frequency: 15kHz

  • Max Power: 6000W

  • Power Supply: AC 220V 50Hz (or equipped with transformer for another voltage)

  • Head Movement: 100mm

  • Pressure: 0.1-0.7Mpa

  • Welding Mode: Time-base welding, energy-based welding

  • Oscillation System: Sefl-oscillating circuit

  • Welding Time: 0.001-9.999S

  • Power Supply Topology: Phase-shift full -bridge

  • Weight: approx. 280KG

  • Machine Size:880*750*770mm

  • Work Table Size: 750*675*20mm

  • Height: 1.77M


  • Thermoplastic Material Welding Character

  • 120231010110801.png


Machine Packing

Compliance to Solid Wood Packaging Materials (SWPM) Regulations:  The International Plant Protection

Convention(IPPC) and International Standards for Phytosanitary Measures no. 15 (ISPM's #15) guidelines

protect against insect infestation in packaging materials.


Warranty and After-sale Service

Warranty

Machine (except consumable parts like sensors) is one year warranty under normal operation,

lifetime technical support and service. Machine parts defect during warranty period, which

will be sent to your end for replacement.


After-sale Service

If need any technical support,kindly contact us lively video call, phone call or email. email or phone call.

Oversea onsite service(optional): mutual communication for detail discussion. There could be extra fee

(like travelling fee,insurance,commodity fee,etc.) result from the traveling.
