15kHz Standard Ultrasonic Welding Machine

EMAIL

Application

This standard ultrasonic welder machine is widely used in, electrical appliances, packaging, toys, electronics,

textile and other industries, has successfully achieved a variety of plastic welding such as:ABA plastics, ABS

plastics, AES plastics, AMMA plastics, ARP plastics, AS plastics, PS plastics, PP plastics, PC plastics, PE,

PVC, etc.The process of ultrasonic welding eliminates the use of glue and allows the thermoplastic parts to bond to itself.

Ultrasonic welding with the proper time setting and pressure is the fastest most reliable method for thermoplastic

parts welding.

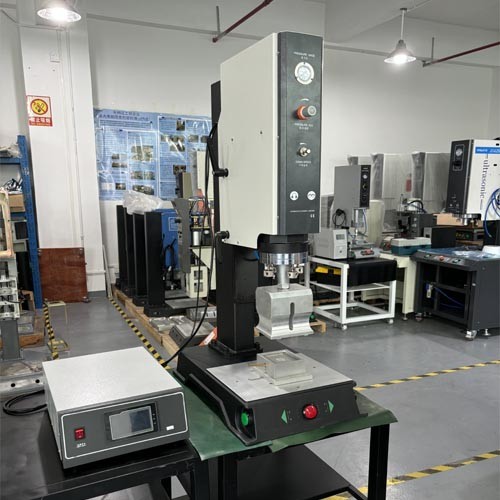

Ultrasonic Welding Machine

Operation Video



Basic Parameter

Model: TEC-1526

Power Supply:220V 50Hz( or include transformer for 110V 60Hz)

Adjustable Height: 0-300mm

Cylinder Distance:0-75mm

Fine-tuning Stroke: 0-10mm

Frequency:15kHz

Power: 2600W/3200W

Weight:85KG

Machine Size: 600*400*1130mm

Certification: CE

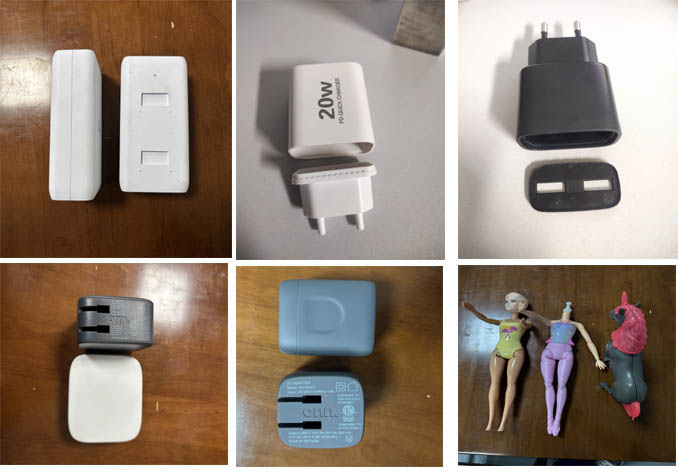

Application Samples

未标题-1 拷贝.jpg

Key Features

A. Capable of welding thermoplastic plastics except for Teflon.

B. Welding time is extremely short, typically ranging from 0.05 to 1 second.

C. Can be welded through mediums such as water or oil at the joint interface.

D. The welding effect can reach a practical level.

E.  Suitable for direct and conductive welding.

F.  The welding energy varies with the plastic material, and not all materials are affected by ultrasonic vibration;

 only suitable vibration surfaces generate heat, so there is no concern about surface damage, which is a characteristic

 of conductive welding. This method is particularly effective in welding harder plastics.

G. Ultrasonic welding does not produce toxic substances like chemical agents, making it a safe welding process.


Machine Packing

Compliance to Solid Wood Packaging Materials (SWPM) Regulations:  The International Plant Protection

Convention(IPPC) and International Standards for Phytosanitary Measures no. 15 (ISPM's #15) guidelines

protect against insect infestation in packaging materials.

Warranty and After-sale Service

Warranty

 Machine(except consumable parts) is one year warranty under normal operation,

 lifetime technical support and service.If need any technical support,kindly contact us by

email or phone call.Machine parts defect during warranty period, which will be sent to

your end for replacement.

Oversea onsite service(optional):  mutual communication for detail discussion.

 There could be extra fee(like travelling fee,insurance,commodity fee,etc.) result from the traveling.
