20kHz Standard Ultrasonic Plastic Welder

EMAIL

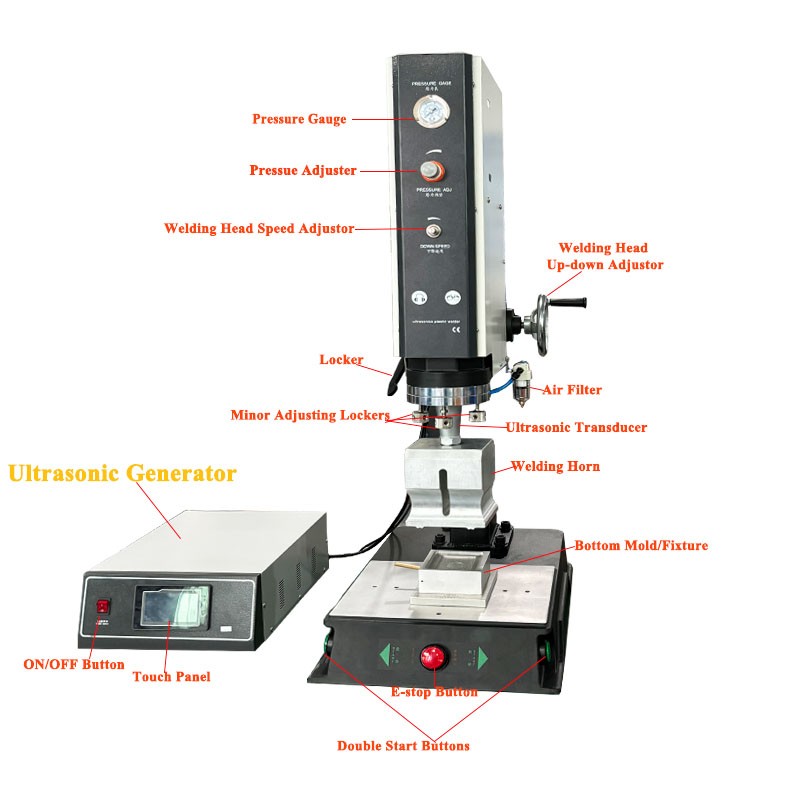

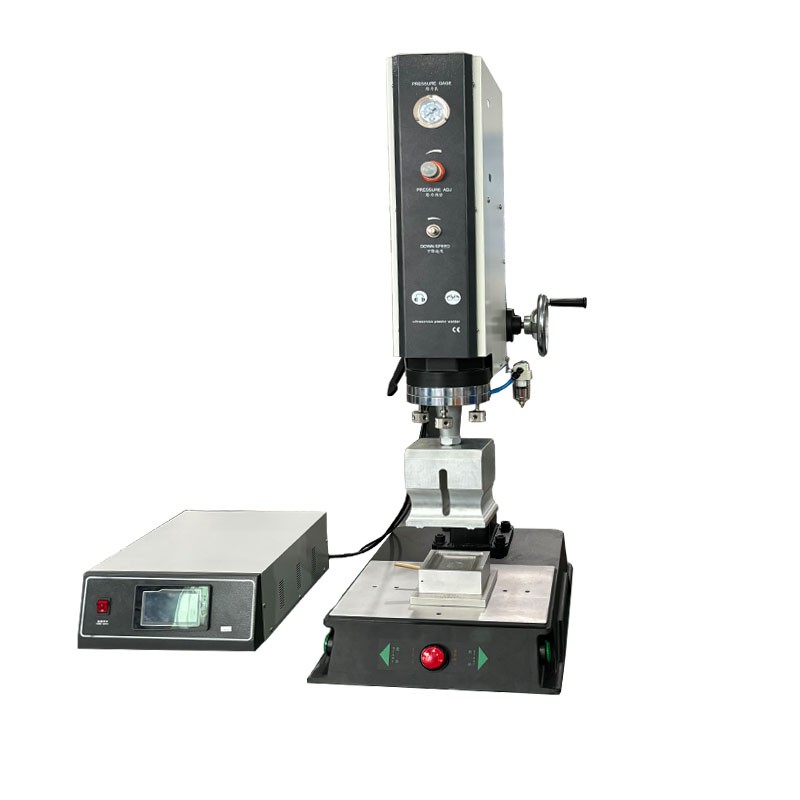

20kHz  Standard Ultrasonic Plastic Welding Machine

Brief

Ultrasonic welding assembly machine is designed for in automotive manufacturing, shipping, aviation, electrical

appliances, packaging, toys, electronics, stationery, medical equipment, environmental protection products,

textile and other industries, has successfully achieved a variety of plastic welding such as:ABA plastics, ABS

plastics, AES plastics, AMMA plastics, ARP plastics, AS plastics, PS plastics, PP plastics, PC plastics, PE,

PVC, etc.The process of ultrasonic welding eliminates the use of glue and allows the thermoplastic parts

to bond to itself.Ultrasonic welding with the proper time setting and pressure is the fastest most reliable

method for thermoplastic parts welding.


Key Features

A. Eliminate use of consumable material

B. Produce airtight and watertight seams

C. Increase production time

D. Easy Operation

E. AirTac Pressure Gauge


Basic Parameter

Power Supply:220V 50Hz( or include transformer for 110V 60Hz)

Adjustable Height: 0-300mm

Cylinder Distance:0-75mm

Fine-tuning Stroke: 0-10mm

Welding Area: max. 100mmx100mm

Frequency:20kHz

Power: 2000W/ 2600W/3000W

Weight:85KG

Machine Size: 600*400*1130mm

Certificate: CE

Machine Packing

Compliance to Solid Wood Packaging Materials (SWPM) Regulations:  The International Plant Protection

Convention(IPPC) and International Standards for Phytosanitary Measures no. 15 (ISPM's #15) guidelines

protect against insect infestation in packaging materials.


Warranty and After-sale Service

Warranty

Machine (except consumable parts like sensors) is one year warranty under normal operation,

lifetime technical support and service. Machine parts defect during warranty period, which

will be sent to your end for replacement.


After-sale Service

If need any technical support,kindly contact us lively video call, phone call or email. email or phone call.

Oversea onsite service(optional): mutual communication for detail discussion. There could be extra fee

(like travelling fee,insurance,commodity fee,etc.) result from the traveling.


Contact Us  now and send us a Feedback for a personalized quote and further communication.
